Initial membrane voltage

Plot several runs of the iaf_cond_exp_sfa_rr neuron without input for various initial values of the membrane potential.
First, the necessary modules for simulation and plotting are imported.
import nest
import numpy
import pylab

A loop runs over a range of initial membrane voltages. In the beginnig of each iteration, the simulation kernel is put back to its initial state using ResetKernel. Next, a neuron is instantiated with Create. The used neuron model iaf_cond_exp_sfa_rr is an implementation of a spiking neuron with integrate-and-fire dynamics, conductance-based synapses, an additional spike-frequency adaptation and relative refractory mechanisms as described in Dayan, P. and Abbott, L.F. (2001) Theoretical neuroscience, MIT Press, page 166. Incoming spike events induce a post-synaptic change of conductance modelled by an exponential function. SetStatus allows to assign the initial membrane voltage of the current loop run to the neuron. Create is used once more to instantiate a voltmeter as recording device which is subsequently connected to the neuron with Connect. Then, a simulation with a duration of 75 ms is started with Simulate. When the simulation has finished, the recorded times and membrane voltages are read from the voltmeter via GetStatus where they can be accessed through the key events of the status dictionary. Finally, the time course of the membrane voltages is plotted for each of the different inital values.
for vinit in numpy.arange(-100, -50, 10, float):

    nest.ResetKernel()

    cbn = nest.Create("iaf_cond_exp_sfa_rr")

    nest.SetStatus(cbn, "V_m", vinit)

    voltmeter = nest.Create("voltmeter")
    nest.Connect(voltmeter, cbn)

    nest.Simulate(75.0)

    t = nest.GetStatus(voltmeter,"events")[0]["times"]
    v = nest.GetStatus(voltmeter,"events")[0]["V_m"]

    pylab.plot(t, v, label="initial V_m = %.2f mV" % vinit)

Set the legend and the labels for the plot outside of the loop.
pylab.ylabel("V_m (mV)")
vinit_example
                                # -*- coding: utf-8 -*-
#
# vinit_example.py
#
# This file is part of NEST.
#
# Copyright (C) 2004 The NEST Initiative
#
# NEST is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 2 of the License, or
# (at your option) any later version.
#
# NEST is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with NEST.  If not, see <http://www.gnu.org/licenses/>.

'''
Initial membrane voltage
------------------------

Plot several runs of the `iaf_cond_exp_sfa_rr` neuron without input for various
initial values of the membrane potential.
'''

'''
First, the necessary modules for simulation and plotting are imported.
'''

import nest
import numpy
import pylab

'''
A loop runs over a range of initial membrane voltages.

In the beginnig of each iteration, the simulation kernel is put back to its
initial state using `ResetKernel`.

Next, a neuron is instantiated with `Create`. The used neuron model
`iaf_cond_exp_sfa_rr` is an implementation of a spiking neuron with
integrate-and-fire dynamics, conductance-based synapses, an additional
spike-frequency adaptation and relative refractory mechanisms as described in
Dayan, P. and Abbott, L.F. (2001) **Theoretical neuroscience**,
*MIT Press*, page 166. Incoming spike events induce a post-synaptic change  of
conductance  modelled  by an  exponential  function. `SetStatus` allows to
assign the initial membrane voltage of the current loop run to the neuron.

`Create` is used once more to instantiate a `voltmeter` as recording device
which is subsequently connected to the neuron with `Connect`.

Then, a simulation with a duration of 75 ms is started with `Simulate`.

When the simulation has finished, the recorded times and membrane voltages are
read from the voltmeter via `GetStatus` where they can be accessed through the
key `events` of the status dictionary.

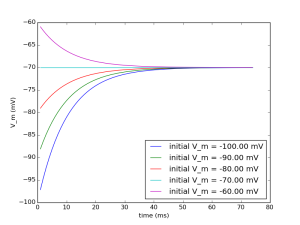

Finally, the time course of the membrane voltages is plotted for each of the
different inital values.
'''

for vinit in numpy.arange(-100, -50, 10, float):

    nest.ResetKernel()

    cbn = nest.Create("iaf_cond_exp_sfa_rr")

    nest.SetStatus(cbn, "V_m", vinit)

    voltmeter = nest.Create("voltmeter")
    nest.Connect(voltmeter, cbn)

    nest.Simulate(75.0)

    t = nest.GetStatus(voltmeter,"events")[0]["times"]
    v = nest.GetStatus(voltmeter,"events")[0]["V_m"]

    pylab.plot(t, v, label="initial V_m = %.2f mV" % vinit)

'''
Set the legend and the labels for the plot outside of the loop.
'''

pylab.legend(loc=4)
pylab.xlabel("time (ms)")
pylab.ylabel("V_m (mV)")
