Random balanced network (delta synapses)

This script simulates an excitatory and an inhibitory population on the basis of the network used in Brunel N, Dynamics of Sparsely Connected Networks of Excitatory and Inhibitory Spiking Neurons, Journal of Computational Neuroscience 8, 183–208 (2000). When connecting the network customary synapse models are used, which allow for querying the number of created synapses. Using spike detectors the average firing rates of the neurons in the populations are established. The building as well as the simulation time of the network are recorded.
Importing all necessary modules for simulation, analysis and plotting.
import nest
import nest.raster_plot

import time
from numpy import exp

nest.ResetKernel()

Assigning the current time to a variable in order to determine the build time of the network.
startbuild = time.time()

Assigning the simulation parameters to variables.
dt      = 0.1    # the resolution in ms
simtime = 1000.0 # Simulation time in ms
delay   = 1.5    # synaptic delay in ms

Definition of the parameters crucial for asynchronous irregular firing of the neurons.
g       = 5.0  # ratio inhibitory weight/excitatory weight
eta     = 2.0  # external rate relative to threshold rate
epsilon = 0.1  # connection probability

Definition of the number of neurons in the network and the number of neuron recorded from
order     = 2500
NE        = 4*order # number of excitatory neurons
NI        = 1*order # number of inhibitory neurons
N_neurons = NE+NI   # number of neurons in total
N_rec     = 50      # record from 50 neurons

Definition of connectivity parameter
CE    = int(epsilon*NE) # number of excitatory synapses per neuron
CI    = int(epsilon*NI) # number of inhibitory synapses per neuron
C_tot = int(CI+CE)      # total number of synapses per neuron

Initialization of the parameters of the integrate and fire neuron and the synapses. The parameter of the neuron are stored in a dictionary.
tauMem = 20.0   # time constant of membrane potential in ms
theta  = 20.0   # membrane threshold potential in mV
neuron_params= {"C_m":        1.0,
                "tau_m":      tauMem,
                "t_ref":      2.0,
                "E_L":        0.0,
                "V_reset":    0.0,
                "V_m":        0.0,
                "V_th":       theta}
J     = 0.1     # postsynaptic amplitude in mV
J_ex  = J       # amplitude of excitatory postsynaptic potential
J_in  = -g*J_ex # amplitude of inhibitory postsynaptic potential


Definition of threshold rate, which is the external rate needed to fix the membrane potential around its threshold, the external firing rate and the rate of the poisson generator which is multiplied by the in-degree CE and converted to Hz by multiplication by 1000.
nu_th  = theta/(J*CE*tauMem)
nu_ex  = eta*nu_th
p_rate = 1000.0*nu_ex*CE

Configuration of the simulation kernel by the previously defined time resolution used in the simulation. Setting "print_time" to True prints the already processed simulation time as well as its percentage of the total simulation time.
nest.SetKernelStatus({"resolution": dt, "print_time": True, "overwrite_files": True})

print("Building network")

Configuration of the model iaf_psc_delta and poisson_generator using SetDefaults(). This function expects the model to be the inserted as a string and the parameter to be specified in a dictionary. All instances of theses models created after this point will have the properties specified in the dictionary by default.
nest.SetDefaults("iaf_psc_delta", neuron_params)
nest.SetDefaults("poisson_generator",{"rate": p_rate})

Creation of the nodes using Create. We store the returned handles in variables for later reference. Here the excitatory and inhibitory, as well as the poisson generator and two spike detectors. The spike detectors will later be used to record excitatory and inhibitory spikes.
nodes_ex = nest.Create("iaf_psc_delta",NE)
nodes_in = nest.Create("iaf_psc_delta",NI)
noise    = nest.Create("poisson_generator")
espikes  = nest.Create("spike_detector")
ispikes  = nest.Create("spike_detector")

Configuration of the spike detectors recording excitatory and inhibitory spikes using SetStatus, which expects a list of node handles and a list of parameter dictionaries. Setting the variable "to_file" to True ensures that the spikes will be recorded in a .gdf file starting with the string assigned to label. Setting "withtime" and "withgid" to True ensures that each spike is saved to file by stating the gid of the spiking neuron and the spike time in one line.
nest.SetStatus(espikes,[{"label": "brunel-py-ex",
                         "withtime": True,
                         "withgid": True,
                         "to_file": True}])

nest.SetStatus(ispikes,[{"label": "brunel-py-in",
                         "withtime": True,
                         "withgid": True,
                         "to_file": True}])

print("Connecting devices")

Definition of a synapse using CopyModel, which expects the model name of a pre-defined synapse, the name of the customary synapse and an optional parameter dictionary. The parameters defined in the dictionary will be the default parameter for the customary synapse. Here we define one synapse for the excitatory and one for the inhibitory connections giving the previously defined weights and equal delays.
nest.CopyModel("static_synapse","excitatory",{"weight":J_ex, "delay":delay})
nest.CopyModel("static_synapse","inhibitory",{"weight":J_in, "delay":delay})

Connecting the previously defined poisson generator to the excitatory and inhibitory neurons using the excitatory synapse. Since the poisson generator is connected to all neurons in the population the default rule ('all_to_all') of Connect() is used. The synaptic properties are inserted via syn_spec which expects a dictionary when defining multiple variables or a string when simply using a pre-defined synapse.
nest.Connect(noise,nodes_ex, syn_spec="excitatory")
nest.Connect(noise,nodes_in, syn_spec="excitatory")

Connecting the first N_rec nodes of the excitatory and inhibitory population to the associated spike detectors using excitatory synapses. Here the same shortcut for the specification of the synapse as defined above is used.
nest.Connect(nodes_ex[:N_rec], espikes, syn_spec="excitatory")
nest.Connect(nodes_in[:N_rec], ispikes, syn_spec="excitatory")

print("Connecting network")

print("Excitatory connections")

Connecting the excitatory population to all neurons using the pre-defined excitatory synapse. Beforehand, the connection parameter are defined in a dictionary. Here we use the connection rule 'fixed_indegree', which requires the definition of the indegree. Since the synapse specification is reduced to assigning the pre-defined excitatory synapse it suffices to insert a string.
conn_params_ex = {'rule': 'fixed_indegree', 'indegree': CE}
nest.Connect(nodes_ex, nodes_ex+nodes_in, conn_params_ex, "excitatory")

print("Inhibitory connections")

Connecting the inhibitory population to all neurons using the pre-defined inhibitory synapse. The connection parameter as well as the synapse paramtere are defined analogously to the connection from the excitatory population defined above.
conn_params_in = {'rule': 'fixed_indegree', 'indegree': CI}
nest.Connect(nodes_in, nodes_ex+nodes_in, conn_params_in, "inhibitory")

Storage of the time point after the buildup of the network in a variable.
endbuild=time.time()

Simulation of the network.
print("Simulating")

nest.Simulate(simtime)

Storage of the time point after the simulation of the network in a variable.
endsimulate= time.time()

Reading out the total number of spikes received from the spike detector connected to the excitatory population and the inhibitory population.
events_ex = nest.GetStatus(espikes,"n_events")[0]
events_in = nest.GetStatus(ispikes,"n_events")[0]

Calculation of the average firing rate of the excitatory and the inhibitory neurons by dividing the total number of recorded spikes by the number of neurons recorded from and the simulation time. The multiplication by 1000.0 converts the unit 1/ms to 1/s=Hz.
rate_ex   = events_ex/simtime*1000.0/N_rec
rate_in   = events_in/simtime*1000.0/N_rec

Reading out the number of connections established using the excitatory and inhibitory synapse model. The numbers are summed up resulting in the total number of synapses.
num_synapses = (nest.GetDefaults("excitatory")["num_connections"] +
               nest.GetDefaults("inhibitory")["num_connections"])

Establishing the time it took to build and simulate the network by taking the difference of the pre-defined time variables.
build_time = endbuild-startbuild
sim_time   = endsimulate-endbuild

Printing the network properties, firing rates and building times.
print("Brunel network simulation (Python)")
print("Number of neurons : {0}".format(N_neurons))
print("Number of synapses: {0}".format(num_synapses))
print("       Exitatory  : {0}".format(int(CE * N_neurons) + N_neurons))
print("       Inhibitory : {0}".format(int(CI * N_neurons)))
print("Excitatory rate   : %.2f Hz" % rate_ex)
print("Inhibitory rate   : %.2f Hz" % rate_in)
print("Building time     : %.2f s" % build_time)
print("Simulation time   : %.2f s" % sim_time)

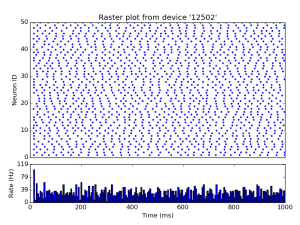

Plot a raster of the excitatory neurons and a histogram.
nest.raster_plot.from_device(espikes, hist=True)
brunel_delta_nest
                                # -*- coding: utf-8 -*-
#
# brunel_delta_nest.py
#
# This file is part of NEST.
#
# Copyright (C) 2004 The NEST Initiative
#
# NEST is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 2 of the License, or
# (at your option) any later version.
#
# NEST is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with NEST.  If not, see <http://www.gnu.org/licenses/>.

'''
Random balanced network (delta synapses)
----------------------------------------

This script simulates an excitatory and an inhibitory population on
the basis of the network used in

Brunel N, Dynamics of Sparsely Connected Networks of Excitatory and
Inhibitory Spiking Neurons, Journal of Computational Neuroscience 8,
183–208 (2000).

When connecting the network customary synapse models are used, which
allow for querying the number of created synapses. Using spike
detectors the average firing rates of the neurons in the populations
are established. The building as well as the simulation time of the
network are recorded.
'''

'''
Importing all necessary modules for simulation, analysis and plotting.
'''

import nest
import nest.raster_plot

import time
from numpy import exp

nest.ResetKernel()

'''
Assigning the current time to a variable in order to determine the
build time of the network.
'''

startbuild = time.time()

'''
Assigning the simulation parameters to variables.
'''

dt      = 0.1    # the resolution in ms
simtime = 1000.0 # Simulation time in ms
delay   = 1.5    # synaptic delay in ms

'''
Definition of the parameters crucial for asynchronous irregular firing
of the neurons.
'''

g       = 5.0  # ratio inhibitory weight/excitatory weight
eta     = 2.0  # external rate relative to threshold rate
epsilon = 0.1  # connection probability

'''
Definition of the number of neurons in the network and the number of
neuron recorded from
'''

order     = 2500
NE        = 4*order # number of excitatory neurons
NI        = 1*order # number of inhibitory neurons
N_neurons = NE+NI   # number of neurons in total
N_rec     = 50      # record from 50 neurons

'''
Definition of connectivity parameter
'''

CE    = int(epsilon*NE) # number of excitatory synapses per neuron
CI    = int(epsilon*NI) # number of inhibitory synapses per neuron
C_tot = int(CI+CE)      # total number of synapses per neuron

'''
Initialization of the parameters of the integrate and fire neuron and
the synapses. The parameter of the neuron are stored in a dictionary.
'''

tauMem = 20.0   # time constant of membrane potential in ms
theta  = 20.0   # membrane threshold potential in mV
neuron_params= {"C_m":        1.0,
                "tau_m":      tauMem,
                "t_ref":      2.0,
                "E_L":        0.0,
                "V_reset":    0.0,
                "V_m":        0.0,
                "V_th":       theta}
J     = 0.1     # postsynaptic amplitude in mV
J_ex  = J       # amplitude of excitatory postsynaptic potential
J_in  = -g*J_ex # amplitude of inhibitory postsynaptic potential


'''
Definition of threshold rate, which is the external rate needed to fix
the membrane potential around its threshold, the external firing rate
and the rate of the poisson generator which is multiplied by the
in-degree CE and converted to Hz by multiplication by 1000.
'''

nu_th  = theta/(J*CE*tauMem)
nu_ex  = eta*nu_th
p_rate = 1000.0*nu_ex*CE

'''
Configuration of the simulation kernel by the previously defined time
resolution used in the simulation. Setting "print_time" to True prints
the already processed simulation time as well as its percentage of the
total simulation time.
'''

nest.SetKernelStatus({"resolution": dt, "print_time": True, "overwrite_files": True})

print("Building network")

'''
Configuration of the model `iaf_psc_delta` and `poisson_generator`
using SetDefaults(). This function expects the model to be the
inserted as a string and the parameter to be specified in a
dictionary. All instances of theses models created after this point
will have the properties specified in the dictionary by default.
'''

nest.SetDefaults("iaf_psc_delta", neuron_params)
nest.SetDefaults("poisson_generator",{"rate": p_rate})

'''
Creation of the nodes using `Create`. We store the returned handles in
variables for later reference. Here the excitatory and inhibitory, as
well as the poisson generator and two spike detectors. The spike
detectors will later be used to record excitatory and inhibitory
spikes.
'''

nodes_ex = nest.Create("iaf_psc_delta",NE)
nodes_in = nest.Create("iaf_psc_delta",NI)
noise    = nest.Create("poisson_generator")
espikes  = nest.Create("spike_detector")
ispikes  = nest.Create("spike_detector")

'''
Configuration of the spike detectors recording excitatory and
inhibitory spikes using `SetStatus`, which expects a list of node
handles and a list of parameter dictionaries. Setting the variable
"to_file" to True ensures that the spikes will be recorded in a .gdf
file starting with the string assigned to label. Setting "withtime"
and "withgid" to True ensures that each spike is saved to file by
stating the gid of the spiking neuron and the spike time in one line.
'''

nest.SetStatus(espikes,[{"label": "brunel-py-ex",
                         "withtime": True,
                         "withgid": True,
                         "to_file": True}])

nest.SetStatus(ispikes,[{"label": "brunel-py-in",
                         "withtime": True,
                         "withgid": True,
                         "to_file": True}])

print("Connecting devices")

'''
Definition of a synapse using `CopyModel`, which expects the model
name of a pre-defined synapse, the name of the customary synapse and
an optional parameter dictionary. The parameters defined in the
dictionary will be the default parameter for the customary
synapse. Here we define one synapse for the excitatory and one for the
inhibitory connections giving the previously defined weights and equal
delays.
'''

nest.CopyModel("static_synapse","excitatory",{"weight":J_ex, "delay":delay})
nest.CopyModel("static_synapse","inhibitory",{"weight":J_in, "delay":delay})

'''
Connecting the previously defined poisson generator to the excitatory
and inhibitory neurons using the excitatory synapse. Since the poisson
generator is connected to all neurons in the population the default
rule ('all_to_all') of Connect() is used. The synaptic properties are
inserted via syn_spec which expects a dictionary when defining
multiple variables or a string when simply using a pre-defined
synapse.
'''

nest.Connect(noise,nodes_ex, syn_spec="excitatory")
nest.Connect(noise,nodes_in, syn_spec="excitatory")

'''
Connecting the first N_rec nodes of the excitatory and inhibitory
population to the associated spike detectors using excitatory
synapses. Here the same shortcut for the specification of the synapse
as defined above is used.
'''

nest.Connect(nodes_ex[:N_rec], espikes, syn_spec="excitatory")
nest.Connect(nodes_in[:N_rec], ispikes, syn_spec="excitatory")

print("Connecting network")

print("Excitatory connections")

'''
Connecting the excitatory population to all neurons using the
pre-defined excitatory synapse. Beforehand, the connection parameter
are defined in a dictionary. Here we use the connection rule
'fixed_indegree', which requires the definition of the indegree. Since
the synapse specification is reduced to assigning the pre-defined
excitatory synapse it suffices to insert a string.
'''

conn_params_ex = {'rule': 'fixed_indegree', 'indegree': CE}
nest.Connect(nodes_ex, nodes_ex+nodes_in, conn_params_ex, "excitatory")

print("Inhibitory connections")

'''
Connecting the inhibitory population to all neurons using the
pre-defined inhibitory synapse. The connection parameter as well as
the synapse paramtere are defined analogously to the connection from
the excitatory population defined above.
'''

conn_params_in = {'rule': 'fixed_indegree', 'indegree': CI}
nest.Connect(nodes_in, nodes_ex+nodes_in, conn_params_in, "inhibitory")

'''
Storage of the time point after the buildup of the network in a
variable.
'''

endbuild=time.time()

'''
Simulation of the network.
'''

print("Simulating")

nest.Simulate(simtime)

'''
Storage of the time point after the simulation of the network in a
variable.
'''

endsimulate= time.time()

'''
Reading out the total number of spikes received from the spike
detector connected to the excitatory population and the inhibitory
population.
'''

events_ex = nest.GetStatus(espikes,"n_events")[0]
events_in = nest.GetStatus(ispikes,"n_events")[0]

'''
Calculation of the average firing rate of the excitatory and the
inhibitory neurons by dividing the total number of recorded spikes by
the number of neurons recorded from and the simulation time. The
multiplication by 1000.0 converts the unit 1/ms to 1/s=Hz.
'''

rate_ex   = events_ex/simtime*1000.0/N_rec
rate_in   = events_in/simtime*1000.0/N_rec

'''
Reading out the number of connections established using the excitatory
and inhibitory synapse model. The numbers are summed up resulting in
the total number of synapses.
'''

num_synapses = nest.GetDefaults("excitatory")["num_connections"]+
nest.GetDefaults("inhibitory")["num_connections"]

'''
Establishing the time it took to build and simulate the network by
taking the difference of the pre-defined time variables.
'''

build_time = endbuild-startbuild
sim_time   = endsimulate-endbuild

'''
Printing the network properties, firing rates and building times.
'''

print("Brunel network simulation (Python)")
print("Number of neurons : {0}".format(N_neurons))
print("Number of synapses: {0}".format(num_synapses))
print("       Exitatory  : {0}".format(int(CE * N_neurons) + N_neurons))
print("       Inhibitory : {0}".format(int(CI * N_neurons)))
print("Excitatory rate   : %.2f Hz" % rate_ex)
print("Inhibitory rate   : %.2f Hz" % rate_in)
print("Building time     : %.2f s" % build_time)
print("Simulation time   : %.2f s" % sim_time)

'''
Plot a raster of the excitatory neurons and a histogram.
'''

nest.raster_plot.from_device(espikes, hist=True)
