Structural Plasticity example

This example shows a simple network of two populations where structural plasticity is used. The network has 1000 neurons, 80% excitatory and 20% inhibitory. The simulation starts without any connectivity. A set of homeostatic rules are defined, according to which structural plasticity will create and delete synapses dynamically during the simulation until a desired level of electrical activity is reached. The model of structural plasticity used here corresponds to the formulation presented in Butz, M., & van Ooyen, A. (2013). A simple rule for dendritic spine and axonal bouton formation can account for cortical reorganization after focal retinal lesions. PLoS Comput. Biol. 9 (10), e1003259.

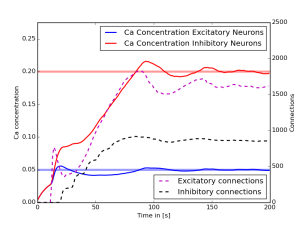

At the end of the simulation, a plot of the evolution of the connectivity in the network and the average calcium concentration in the neurons is created.
First, we import all necessary modules.
import nest
import numpy
import matplotlib.pyplot as pl
import sys

class StructralPlasticityExample:
    def __init__(self):
We define general simulation parameters
        # simulated time (ms)
        self.t_sim = 200000.0
        # simulation step (ms).
        self.dt = 0.1
        self.number_excitatory_neurons = 800
        self.number_inhibitory_neurons = 200

        # Structural_plasticity properties
        self.update_interval = 1000
        self.record_interval = 1000.0
        # rate of background Poisson input
        self.bg_rate = 10000.0
        self.neuron_model = 'iaf_psc_exp'

In this implementation of structural plasticity, neurons grow connection points called synaptic elements. Synapses can be created between compatible synaptic elements. The growth of these elements is guided by homeostatic rules, defined as growth curves. Here we specify the growth curves for synaptic elements of excitatory and inhibitory neurons.
        # Excitatory synaptic elements of excitatory neurons
        self.growth_curve_e_e = {
            'growth_curve': "gaussian",
            'growth_rate': 0.0001,  # (elements/ms)
            'continuous': False,
            'eta': 0.0,  # Ca2+
            'eps': 0.05,  # Ca2+
        }

        # Inhibitory synaptic elements of excitatory neurons
        self.growth_curve_e_i = {
            'growth_curve': "gaussian",
            'growth_rate': 0.0001,  # (elements/ms)
            'continuous': False,
            'eta': 0.0,  # Ca2+
            'eps': self.growth_curve_e_e['eps'],  # Ca2+
        }

        # Excitatory synaptic elements of inhibitory neurons
        self.growth_curve_i_e = {
            'growth_curve': "gaussian",
            'growth_rate': 0.0004,  # (elements/ms)
            'continuous': False,
            'eta': 0.0,  # Ca2+
            'eps': 0.2,  # Ca2+
        }

        # Inhibitory synaptic elements of inhibitory neurons
        self.growth_curve_i_i = {
            'growth_curve': "gaussian",
            'growth_rate': 0.0001,  # (elements/ms)
            'continuous': False,
            'eta': 0.0,  # Ca2+
            'eps': self.growth_curve_i_e['eps']  # Ca2+
        }

Now we specify the neuron model
        self.model_params = {'tau_m': 10.0,  # membrane time constant (ms)
                             'tau_syn_ex': 0.5,  # excitatory synaptic time constant (ms)
                             'tau_syn_in': 0.5,  # inhibitory synaptic time constant (ms)
                             't_ref': 2.0,  # absolute refractory period (ms)
                             'E_L': -65.0,  # resting membrane potential (mV)
                             'V_th': -50.0,  # spike threshold (mV)
                             'C_m': 250.0,  # membrane capacitance (pF)
                             'V_reset': -65.0,  # reset potential (mV)
                             }

        self.nodes_e = None
        self.nodes_i = None
        self.mean_ca_e = []
        self.mean_ca_i = []
        self.total_connections_e = []
        self.total_connections_i = []

We initialize variables for the post-synaptic currents of the excitatory, inhibitory and external synapses. These values were calculated from a PSP amplitude of 1 for excitatory synapses, -1 for inhibitory synapses and 0.11 for external synapses.
        self.psc_e = 585.0
        self.psc_i = -585.0
        self.psc_ext = 6.2

    def prepare_simulation(self):
        nest.ResetKernel()
        nest.set_verbosity('M_ERROR')
We set global kernel parameters. Here we define the resolution for the simulation, which is also the time resolution for the update of the synaptic elements.
        nest.SetKernelStatus(
            {
                'resolution': self.dt
            }
        )

Set Structural Plasticity synaptic update interval which is how often the connectivity will be updated inside the network. It is important to notice that synaptic elements and connections change on different time scales.
        nest.SetStructuralPlasticityStatus({
            'structural_plasticity_update_interval': self.update_interval,
        })

Now we define Structural Plasticity synapses. In this example we create two synapse models, one for excitatory and one for inhibitory synapses. Then we define that excitatory synapses can only be created between a pre synaptic element called 'Axon_ex' and a post synaptic element called Den_ex. In a similar manner, synaptic elements for inhibitory synapses are defined.
        nest.CopyModel('static_synapse', 'synapse_ex')
        nest.SetDefaults('synapse_ex', {'weight': self.psc_e, 'delay': 1.0})
        nest.CopyModel('static_synapse', 'synapse_in')
        nest.SetDefaults('synapse_in', {'weight': self.psc_i, 'delay': 1.0})
        nest.SetStructuralPlasticityStatus({
            'structural_plasticity_synapses': {
                'synapse_ex': {
                    'model': 'synapse_ex',
                    'post_synaptic_element': 'Den_ex',
                    'pre_synaptic_element': 'Axon_ex',
                },
                'synapse_in': {
                    'model': 'synapse_in',
                    'post_synaptic_element': 'Den_in',
                    'pre_synaptic_element': 'Axon_in',
                },
            }
        })

    def create_nodes(self):
Now we assign the growth curves to the corresponding synaptic elements
        synaptic_elements = {
            'Den_ex': self.growth_curve_e_e,
            'Den_in': self.growth_curve_e_i,
            'Axon_ex': self.growth_curve_e_e,
        }

        synaptic_elements_i = {
            'Den_ex': self.growth_curve_i_e,
            'Den_in': self.growth_curve_i_i,
            'Axon_in': self.growth_curve_i_i,
        }

Then it is time to create a population with 80% of the total network size excitatory neurons and another one with 20% of the total network size of inhibitory neurons
        self.nodes_e = nest.Create('iaf_neuron', self.number_excitatory_neurons, {
            'synaptic_elements': synaptic_elements
        })

        self.nodes_i = nest.Create('iaf_neuron', self.number_inhibitory_neurons, {
            'synaptic_elements': synaptic_elements_i
        })
        nest.SetStatus(self.nodes_e, 'synaptic_elements', synaptic_elements)
        nest.SetStatus(self.nodes_i, 'synaptic_elements', synaptic_elements_i)

    def connect_external_input(self):
We create and connect the Poisson generator for external input
        noise = nest.Create('poisson_generator')
        nest.SetStatus(noise, {"rate": self.bg_rate})
        nest.Connect(noise, self.nodes_e, 'all_to_all', {'weight': self.psc_ext, 'delay': 1.0})
        nest.Connect(noise, self.nodes_i, 'all_to_all', {'weight': self.psc_ext, 'delay': 1.0})

In order to save the amount of average calcium concentration in each population through time we create the function record_ca. Here we use the GetStatus function to retrieve the value of Ca for every neuron in the network and then store the average.
    def record_ca(self):
        ca_e = nest.GetStatus(self.nodes_e, 'Ca'),  # Calcium concentration
        self.mean_ca_e.append(numpy.mean(ca_e))

        ca_i = nest.GetStatus(self.nodes_i, 'Ca'),  # Calcium concentration
        self.mean_ca_i.append(numpy.mean(ca_i))

In order to save the state of the connectivity in the network through time we create the function record_connectivity. Here we use the GetStatus function to retrieve the number of connected pre synaptic elements of each neuron. The total amount of excitatory connections is equal to the total amount of connected excitatory pre synaptic elements. The same applies for inhibitory connections.
    def record_connectivity(self):
        syn_elems_e = nest.GetStatus(self.nodes_e, 'synaptic_elements')
        syn_elems_i = nest.GetStatus(self.nodes_i, 'synaptic_elements')
        self.total_connections_e.append(sum(neuron['Axon_ex']['z_connected'] for neuron in syn_elems_e))
        self.total_connections_i.append(sum(neuron['Axon_in']['z_connected'] for neuron in syn_elems_i))

We define a function to plot the recorded values at the end of the simulation.
    def plot_data(self):
        fig, ax1 = pl.subplots()
        ax1.axhline(self.growth_curve_e_e['eps'], linewidth=4.0, color='#9999FF')
        ax1.plot(self.mean_ca_e, 'b', label='Ca Concentration Excitatory Neurons', linewidth=2.0)
        ax1.axhline(self.growth_curve_i_e['eps'], linewidth=4.0, color='#FF9999')
        ax1.plot(self.mean_ca_i, 'r', label='Ca Concentration Inhibitory Neurons', linewidth=2.0)
        ax1.set_ylim([0, 0.275])
        ax1.set_xlabel("Time in [s]")
        ax1.set_ylabel("Ca concentration")
        ax2 = ax1.twinx()
        ax2.plot(self.total_connections_e, 'm', label='Excitatory connections', linewidth=2.0, linestyle='--')
        ax2.plot(self.total_connections_i, 'k', label='Inhibitory connections', linewidth=2.0, linestyle='--')
        ax2.set_ylim([0, 2500])
        ax2.set_ylabel("Connections")
        ax1.legend(loc=1)
        ax2.legend(loc=4)
        pl.savefig('StructuralPlasticityExample.eps', format='eps')

It is time to specify how we want to perform the simulation. In this function we first enable structural plasticity in the network and then we simulate in steps. On each step we record the calcium concentration and the connectivity. At the end of the simulation, the plot of connections and calcium concentration through time is generated.
    def simulate(self):
        if nest.NumProcesses() > 1:
            sys.exit("For simplicity, this example only works for a single process.")
        nest.EnableStructuralPlasticity()
        print("Starting simulation")
        sim_steps = numpy.arange(0, self.t_sim, self.record_interval)
        for i, step in enumerate(sim_steps):
            nest.Simulate(self.record_interval)
            self.record_ca()
            self.record_connectivity()
            if i%20 == 0:
                print( "Progress: " + str(i/2) + "%" )
        print("Simulation finished successfully")

Finally we take all the functions that we have defined and create the sequence for our example. We prepare the simulation, create the nodes for the network, connect the external input and then simulate. Please note that as we are simulating 200 biological seconds in this example, it will take a few minutes to complete.
    example.plot_data()
structural_plasticity
                                # -*- coding: utf-8 -*-
#
# structural_plasticity.py
#
# This file is part of NEST.
#
# Copyright (C) 2004 The NEST Initiative
#
# NEST is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 2 of the License, or
# (at your option) any later version.
#
# NEST is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with NEST.  If not, see <http://www.gnu.org/licenses/>.


'''
Structural Plasticity example
-----------------------
This example shows a simple network of two populations where structural plasticity
is used. The network has 1000 neurons, 80% excitatory and 20% inhibitory. The
simulation starts without any connectivity. A set of homeostatic rules are defined,
according to which structural plasticity will create and delete synapses dynamically
during the simulation until a desired level of electrical activity is reached. The
model of structural plasticity used here corresponds to the formulation presented
in Butz, M., & van Ooyen, A. (2013). A simple rule for dendritic spine and axonal
bouton formation can account for cortical reorganization after focal retinal
lesions. PLoS Comput. Biol. 9 (10), e1003259.

At the end of the simulation, a plot of the evolution of the connectivity in the network
and the average calcium concentration in the neurons is created.

'''

'''
First, we import all necessary modules.
'''

import nest
import numpy
import matplotlib.pyplot as pl
import sys

class StructralPlasticityExample:
    def __init__(self):
        '''
        We define general simulation parameters
        '''
        # simulated time (ms)
        self.t_sim = 200000.0
        # simulation step (ms).
        self.dt = 0.1
        self.number_excitatory_neurons = 800
        self.number_inhibitory_neurons = 200

        # Structural_plasticity properties
        self.update_interval = 1000
        self.record_interval = 1000.0
        # rate of background Poisson input
        self.bg_rate = 10000.0
        self.neuron_model = 'iaf_psc_exp'

        '''
        In this implementation of structural plasticity, neurons grow connection points
        called synaptic elements. Synapses can be created between compatible synaptic
        elements. The growth of these elements is guided by homeostatic rules, defined
        as growth curves.
        Here we specify the growth curves for synaptic elements of excitatory and inhibitory
        neurons.
        '''
        # Excitatory synaptic elements of excitatory neurons
        self.growth_curve_e_e = {
            'growth_curve': "gaussian",
            'growth_rate': 0.0001,  # (elements/ms)
            'continuous': False,
            'eta': 0.0,  # Ca2+
            'eps': 0.05,  # Ca2+
        }

        # Inhibitory synaptic elements of excitatory neurons
        self.growth_curve_e_i = {
            'growth_curve': "gaussian",
            'growth_rate': 0.0001,  # (elements/ms)
            'continuous': False,
            'eta': 0.0,  # Ca2+
            'eps': self.growth_curve_e_e['eps'],  # Ca2+
        }

        # Excitatory synaptic elements of inhibitory neurons
        self.growth_curve_i_e = {
            'growth_curve': "gaussian",
            'growth_rate': 0.0004,  # (elements/ms)
            'continuous': False,
            'eta': 0.0,  # Ca2+
            'eps': 0.2,  # Ca2+
        }

        # Inhibitory synaptic elements of inhibitory neurons
        self.growth_curve_i_i = {
            'growth_curve': "gaussian",
            'growth_rate': 0.0001,  # (elements/ms)
            'continuous': False,
            'eta': 0.0,  # Ca2+
            'eps': self.growth_curve_i_e['eps']  # Ca2+
        }

        '''
        Now we specify the neuron model
        '''
        self.model_params = {'tau_m': 10.0,  # membrane time constant (ms)
                             'tau_syn_ex': 0.5,  # excitatory synaptic time constant (ms)
                             'tau_syn_in': 0.5,  # inhibitory synaptic time constant (ms)
                             't_ref': 2.0,  # absolute refractory period (ms)
                             'E_L': -65.0,  # resting membrane potential (mV)
                             'V_th': -50.0,  # spike threshold (mV)
                             'C_m': 250.0,  # membrane capacitance (pF)
                             'V_reset': -65.0,  # reset potential (mV)
                             }

        self.nodes_e = None
        self.nodes_i = None
        self.mean_ca_e = []
        self.mean_ca_i = []
        self.total_connections_e = []
        self.total_connections_i = []

        '''
        We initialize variables for the post-synaptic currents of the excitatory, inhibitory and
        external synapses. These values were calculated from a PSP amplitude of 1 for excitatory
        synapses, -1 for inhibitory synapses and 0.11 for external synapses.
        '''
        self.psc_e = 585.0
        self.psc_i = -585.0
        self.psc_ext = 6.2

    def prepare_simulation(self):
        nest.ResetKernel()
        nest.set_verbosity('M_ERROR')
        '''
        We set global kernel parameters. Here we define the resolution for the simulation,
        which is also the time resolution for the update of the synaptic elements.
        '''
        nest.SetKernelStatus(
            {
                'resolution': self.dt
            }
        )

        '''
        Set Structural Plasticity synaptic update interval which is how often the connectivity
        will be updated inside the network. It is important to notice that synaptic elements
        and connections change on different time scales.
        '''
        nest.SetStructuralPlasticityStatus({
            'structural_plasticity_update_interval': self.update_interval,
        })

        '''
        Now we define Structural Plasticity synapses. In this example we create two
        synapse models, one for excitatory and one for inhibitory synapses. Then
        we define that excitatory synapses can only be created between a
        pre synaptic element called 'Axon_ex' and a post synaptic element called
        Den_ex. In a similar manner, synaptic elements for inhibitory synapses
        are defined.
        '''
        nest.CopyModel('static_synapse', 'synapse_ex')
        nest.SetDefaults('synapse_ex', {'weight': self.psc_e, 'delay': 1.0})
        nest.CopyModel('static_synapse', 'synapse_in')
        nest.SetDefaults('synapse_in', {'weight': self.psc_i, 'delay': 1.0})
        nest.SetStructuralPlasticityStatus({
            'structural_plasticity_synapses': {
                'synapse_ex': {
                    'model': 'synapse_ex',
                    'post_synaptic_element': 'Den_ex',
                    'pre_synaptic_element': 'Axon_ex',
                },
                'synapse_in': {
                    'model': 'synapse_in',
                    'post_synaptic_element': 'Den_in',
                    'pre_synaptic_element': 'Axon_in',
                },
            }
        })

    def create_nodes(self):
        '''
        Now we assign the growth curves to the corresponding synaptic elements
        '''
        synaptic_elements = {
            'Den_ex': self.growth_curve_e_e,
            'Den_in': self.growth_curve_e_i,
            'Axon_ex': self.growth_curve_e_e,
        }

        synaptic_elements_i = {
            'Den_ex': self.growth_curve_i_e,
            'Den_in': self.growth_curve_i_i,
            'Axon_in': self.growth_curve_i_i,
        }

        '''
        Then it is time to create a population with 80% of the total network size excitatory neurons
        and another one with 20% of the total network size of inhibitory neurons
        '''
        self.nodes_e = nest.Create('iaf_neuron', self.number_excitatory_neurons, {
            'synaptic_elements': synaptic_elements
        })

        self.nodes_i = nest.Create('iaf_neuron', self.number_inhibitory_neurons, {
            'synaptic_elements': synaptic_elements_i
        })
        nest.SetStatus(self.nodes_e, 'synaptic_elements', synaptic_elements)
        nest.SetStatus(self.nodes_i, 'synaptic_elements', synaptic_elements_i)

    def connect_external_input(self):
        '''
        We create and connect the Poisson generator for external input
        '''
        noise = nest.Create('poisson_generator')
        nest.SetStatus(noise, {"rate": self.bg_rate})
        nest.Connect(noise, self.nodes_e, 'all_to_all', {'weight': self.psc_ext, 'delay': 1.0})
        nest.Connect(noise, self.nodes_i, 'all_to_all', {'weight': self.psc_ext, 'delay': 1.0})

    '''
    In order to save the amount of average calcium concentration in each population through time
    we create the function record_ca. Here we use the GetStatus function to retrieve the
    value of Ca for every neuron in the network and then store the average.
    '''
    def record_ca(self):
        ca_e = nest.GetStatus(self.nodes_e, 'Ca'),  # Calcium concentration
        self.mean_ca_e.append(numpy.mean(ca_e))

        ca_i = nest.GetStatus(self.nodes_i, 'Ca'),  # Calcium concentration
        self.mean_ca_i.append(numpy.mean(ca_i))

    '''
    In order to save the state of the connectivity in the network through time
    we create the function record_connectivity. Here we use the GetStatus function to retrieve the
    number of connected pre synaptic elements of each neuron. The total amount of excitatory connections
    is equal to the total amount of connected excitatory pre synaptic elements. The same applies for
    inhibitory connections.
    '''
    def record_connectivity(self):
        syn_elems_e = nest.GetStatus(self.nodes_e, 'synaptic_elements')
        syn_elems_i = nest.GetStatus(self.nodes_i, 'synaptic_elements')
        self.total_connections_e.append(sum(neuron['Axon_ex']['z_connected'] for neuron in syn_elems_e))
        self.total_connections_i.append(sum(neuron['Axon_in']['z_connected'] for neuron in syn_elems_i))

    '''
    We define a function to plot the recorded values at the end of the simulation.
    '''
    def plot_data(self):
        fig, ax1 = pl.subplots()
        ax1.axhline(self.growth_curve_e_e['eps'], linewidth=4.0, color='#9999FF')
        ax1.plot(self.mean_ca_e, 'b', label='Ca Concentration Excitatory Neurons', linewidth=2.0)
        ax1.axhline(self.growth_curve_i_e['eps'], linewidth=4.0, color='#FF9999')
        ax1.plot(self.mean_ca_i, 'r', label='Ca Concentration Inhibitory Neurons', linewidth=2.0)
        ax1.set_ylim([0, 0.275])
        ax1.set_xlabel("Time in [s]")
        ax1.set_ylabel("Ca concentration")
        ax2 = ax1.twinx()
        ax2.plot(self.total_connections_e, 'm', label='Excitatory connections', linewidth=2.0, linestyle='--')
        ax2.plot(self.total_connections_i, 'k', label='Inhibitory connections', linewidth=2.0, linestyle='--')
        ax2.set_ylim([0, 2500])
        ax2.set_ylabel("Connections")
        ax1.legend(loc=1)
        ax2.legend(loc=4)
        pl.savefig('StructuralPlasticityExample.eps', format='eps')

    '''
    It is time to specify how we want to perform the simulation. In this function we first enable structural
    plasticity in the network and then we simulate in steps. On each step we record the calcium concentration
    and the connectivity. At the end of the simulation, the plot of connections and calcium concentration
    through time is generated.
    '''
    def simulate(self):
        if nest.NumProcesses() > 1:
            sys.exit("For simplicity, this example only works for a single process.")
        nest.EnableStructuralPlasticity()
        print("Starting simulation")
        sim_steps = numpy.arange(0, self.t_sim, self.record_interval)
        for i, step in enumerate(sim_steps):
            nest.Simulate(self.record_interval)
            self.record_ca()
            self.record_connectivity()
            if i%20 == 0:
                print( "Progress: " + str(i/2) + "%" )
        print("Simulation finished successfully")

'''
Finally we take all the functions that we have defined and create the sequence for our example.
We prepare the simulation, create the nodes for the network, connect the external input and
then simulate. Please note that as we are simulating 200 biological seconds in this example,
it will take a few minutes to complete.
'''
if __name__ == '__main__':
    example = StructralPlasticityExample()
    # Prepare simulation
    example.prepare_simulation()
    example.create_nodes()
    example.connect_external_input()
    # Start simulation
    example.simulate()
    example.plot_data()
