tsodyks depressing example

This scripts simulates two neurons. One is driven with dc-input and connected to the other one with a depressing tsodyks synapse. The membrane potential trace of the second neuron is recorded.
This example reproduces figure 1A of Tsodyks et al. (1998) Neural Networks with Dynamic Synapses. Neural computation, http://dx.doi.org/10.1162/089976698300017502 This example is analog to tsodyks_facilitating.py, except that different synapse parameters are used. Here, a large facilitation parameter U causes a fast saturation of the synaptic efficacy (Eq. 2.2), disabling a facilitating behavior.
First, we import all necessary modules for simulation and plotting.
import nest
import nest.voltage_trace
import pylab
from numpy import exp

Second, the simulation parameters are assigned to variables. The neuron and synapse parameters are stored into a dictionary.
h       = 0.1    # simulation step size (ms)
Tau     = 40.    # membrane time constant
Theta   = 15.    # threshold
U0      = 0.     # reset potential of membrane potential
R       = 0.1    # 100 M Ohm
C       = Tau/R  # Tau (ms)/R in NEST units
TauR    = 2.     # refractory time
Tau_psc = 3.     # time constant of PSC (= Tau_inact)
Tau_rec = 800.   # recovery time
Tau_fac = 0.     # facilitation time
U       = 0.5    # facilitation parameter U
A       = 250.   # PSC weight in pA
f       = 20./1000. # frequency in Hz converted to 1/ms
Tend    = 1200.  # simulation time
TIstart = 50.    # start time of dc
TIend   = 1050.  # end time of dc
I0      = Theta*C/Tau/(1-exp(-(1/f-TauR)/Tau)) # dc amplitude

neuron_param = {"tau_m"    :  Tau,
               "t_ref"     :  TauR,
               "tau_syn_ex":  Tau_psc,
               "tau_syn_in":  Tau_psc,
               "C_m"       :  C,
               "V_reset"   :  U0,
               "E_L"       :  U0,
               "V_m"       :  U0,
               "V_th"      :  Theta}

syn_param = {"tau_psc" :  Tau_psc,
            "tau_rec" :  Tau_rec,
            "tau_fac" :  Tau_fac,
            "U"       :  U,
            "delay"   :  0.1,
            "weight"  :  A,
            "u"       :  0.0,
            "x"       :  1.0}

Third, we reset the kernel and set the resolution using SetKernelStatus.
nest.ResetKernel()
nest.SetKernelStatus({"resolution": h})

Fourth, the nodes are created using Create. We store the returned handles in variables for later reference.
neurons = nest.Create("iaf_psc_exp",2)
dc_gen = nest.Create("dc_generator")
volts=nest.Create("voltmeter")

Fifth, the iaf_psc_exp-neurons, the dc_generator and the voltmeter are configured using SetStatus, which expects a list of node handles and a parameter dictionary or a list of parameter dictionaries.
nest.SetStatus(neurons, neuron_param)
nest.SetStatus(dc_gen, {"amplitude": I0, "start": TIstart, "stop": TIend})
nest.SetStatus(volts,{"label": "voltmeter","withtime": True,"withgid": True,
                         "interval": 1.})

Sixth, the dc_generator is connected to the first neuron (neurons[0]) and the voltmeter is connected to the second neuron (neurons[1]). The command Connect has different variants. Plain Connect just takes the handles of pre- and post-synaptic nodes and uses the default values for weight and delay. Note that the connection direction for the voltmeter reflects the signal flow in the simulation kernel, because it observes the neuron instead of receiving events from it.
nest.Connect(dc_gen,[neurons[0]])
nest.Connect(volts,[neurons[1]])

Seventh, the first neuron (neurons[0]) is connected to the second neuron (neurons[1]). The command CopyModel copies the tsodyks_synapse model to the new name syn with parameters syn_param. The manually defined model syn is used in the connection routine via the syn_spec parameter.
nest.CopyModel("tsodyks_synapse","syn",syn_param)
nest.Connect([neurons[0]],[neurons[1]],syn_spec="syn")

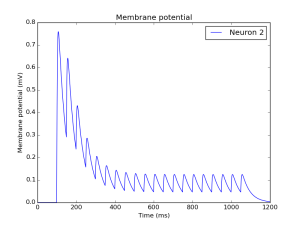

Finally, we simulate the configuration using the command Simulate, where the simulation time Tend is passed as the argument. We plot the target neuron's membrane potential as a function of time.
nest.voltage_trace.from_device(volts)
tsodyks_depressing
                                # -*- coding: utf-8 -*-
#
# tsodyks_depressing.py
#
# This file is part of NEST.
#
# Copyright (C) 2004 The NEST Initiative
#
# NEST is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 2 of the License, or
# (at your option) any later version.
#
# NEST is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with NEST.  If not, see <http://www.gnu.org/licenses/>.

'''
tsodyks depressing example
--------------------------

This scripts simulates two neurons. One is driven with dc-input and
connected to the other one with a depressing tsodyks synapse. The
membrane potential trace of the second neuron is recorded.


This example reproduces figure 1A of Tsodyks et al. (1998)
**Neural Networks with Dynamic Synapses**.
*Neural computation*, http://dx.doi.org/10.1162/089976698300017502
This example is analog to ``tsodyks_facilitating.py``, except that
different synapse parameters are used. Here, a large facilitation
parameter ``U`` causes a fast saturation of the synaptic efficacy
(Eq. 2.2), disabling a facilitating behavior.
'''

'''
First, we import all necessary modules for simulation and plotting.
'''

import nest
import nest.voltage_trace
import pylab
from numpy import exp

'''
Second, the simulation parameters are assigned to variables. The
neuron and synapse parameters are stored into a dictionary.
'''

h       = 0.1    # simulation step size (ms)
Tau     = 40.    # membrane time constant
Theta   = 15.    # threshold
U0      = 0.     # reset potential of membrane potential
R       = 0.1    # 100 M Ohm
C       = Tau/R  # Tau (ms)/R in NEST units
TauR    = 2.     # refractory time
Tau_psc = 3.     # time constant of PSC (= Tau_inact)
Tau_rec = 800.   # recovery time
Tau_fac = 0.     # facilitation time
U       = 0.5    # facilitation parameter U
A       = 250.   # PSC weight in pA
f       = 20./1000. # frequency in Hz converted to 1/ms
Tend    = 1200.  # simulation time
TIstart = 50.    # start time of dc
TIend   = 1050.  # end time of dc
I0      = Theta*C/Tau/(1-exp(-(1/f-TauR)/Tau)) # dc amplitude

neuron_param = {"tau_m"    :  Tau,
               "t_ref"     :  TauR,
               "tau_syn_ex":  Tau_psc,
               "tau_syn_in":  Tau_psc,
               "C_m"       :  C,
               "V_reset"   :  U0,
               "E_L"       :  U0,
               "V_m"       :  U0,
               "V_th"      :  Theta}

syn_param = {"tau_psc" :  Tau_psc,
            "tau_rec" :  Tau_rec,
            "tau_fac" :  Tau_fac,
            "U"       :  U,
            "delay"   :  0.1,
            "weight"  :  A,
            "u"       :  0.0,
            "x"       :  1.0}

'''
Third, we reset the kernel and set the resolution using `SetKernelStatus`.
'''

nest.ResetKernel()
nest.SetKernelStatus({"resolution": h})

'''
Fourth, the nodes are created using `Create`. We store the returned
handles in variables for later reference.
'''

neurons = nest.Create("iaf_psc_exp",2)
dc_gen = nest.Create("dc_generator")
volts=nest.Create("voltmeter")

'''
Fifth, the `iaf_psc_exp`-neurons, the `dc_generator` and the
`voltmeter` are configured using `SetStatus`, which expects a list of
node handles and a parameter dictionary or a list of parameter
dictionaries.
'''

nest.SetStatus(neurons, neuron_param)
nest.SetStatus(dc_gen, {"amplitude": I0, "start": TIstart, "stop": TIend})
nest.SetStatus(volts,{"label": "voltmeter","withtime": True,"withgid": True,
                         "interval": 1.})

'''
Sixth, the `dc_generator` is connected to the first neuron
(``neurons[0]``) and the `voltmeter` is connected to the second neuron
(``neurons[1]``). The command `Connect` has different variants. Plain
`Connect` just takes the handles of pre- and post-synaptic nodes and
uses the default values for weight and delay. Note that the connection
direction for the `voltmeter` reflects the signal flow in the
simulation kernel, because it observes the neuron instead of receiving
events from it.

'''

nest.Connect(dc_gen,[neurons[0]])
nest.Connect(volts,[neurons[1]])

'''
Seventh, the first neuron (``neurons[0]``) is connected to the
second neuron (``neurons[1]``).  The command `CopyModel` copies the
`tsodyks_synapse` model to the new name ``syn`` with parameters
``syn_param``.  The manually defined model ``syn`` is used in the
connection routine via the ``syn_spec`` parameter.
'''

nest.CopyModel("tsodyks_synapse","syn",syn_param)
nest.Connect([neurons[0]],[neurons[1]],syn_spec="syn")

'''
Finally, we simulate the configuration using the command
`Simulate`, where the simulation time ``Tend`` is passed as the
argument.  We plot the target neuron's membrane potential as a
function of time.
'''

nest.Simulate(Tend)
nest.voltage_trace.from_device(volts)
